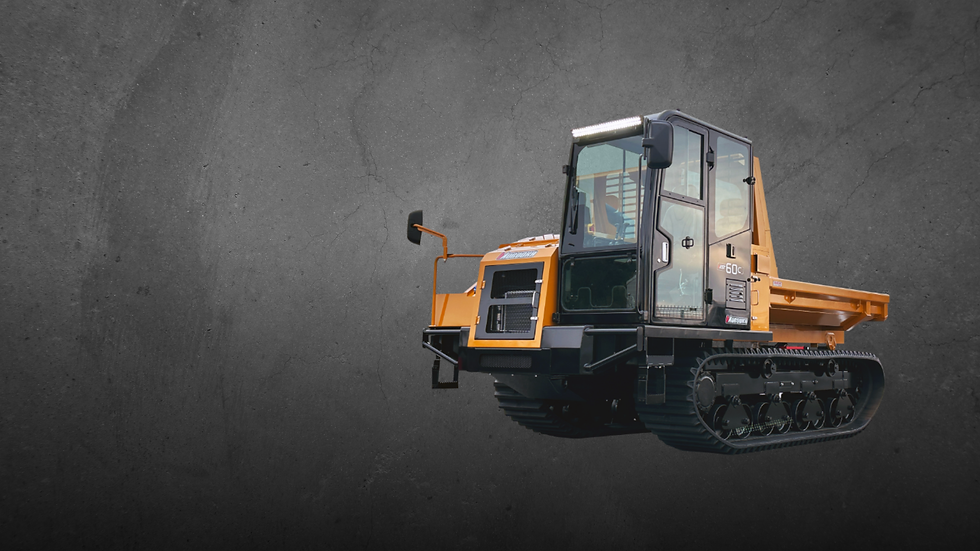

MST-60C

Performance

Maximum Payload

6,000 kg

Travel Speed (High/Low)

10.2 / 7.1 km/h

Ground Pressure （Empty /Loaded）

25.2 / 45.2 kPa

Machine Dimension and Weight

Operating Weight

7,600 kg

Overall Length

5,010 mm

Overall Width

2,465 mm

Overall Height

2,710 mm

Minimum Ground Clearance

425 mm

Crawler Width

600 mm

Dump Body

Dump Shape

Scoop end

Length x Width x Height

2,800 x 1,950 x 400 mm

Dump Capacity（Struck/Heaped）

1.9 / 3 m³

Engine

Name

Caterpillar C4.4

Nominal Output

55 kW / 2,200rpm

Fuel Used

Diesel

Tank Capacity

Fuel Tank Capacity

127 ℓ

Hydraulic Oil Tank Capacity

54 ℓ

DEF Tank Capacity

19 ℓ

Off-Road Law Emission Regulation Notification and Standards

Name and Model of The non-road special motor vehicle

–

Name and Type of Specified prime mover

–

Emission Standard

Tier 4 Final / EU Stage V
