MST40CR

Add a Title

Performance	Maximum Payload	4,000 kg
	Travel Speed (High/Low)	10.8 / 7.6 km/h
	Ground Pressure (Empty/Loaded)	25.9 / 46.8 kPa
Machine Dimension and Weight	Operating Weight	5,100 kg
	Overall Length	3,900 mm
	Overall Width	2,100 mm
	Overall Height	2,615 mm
	Minimum Ground Clearance	455 mm
	Crawler Width	500 mm
Dump Body	Dump Shape	Scoop
	Length x Width x Height	2,000 x 1,900 x 370 mm
	Dump Capacity (Struck/Heaped)	1.48 / 1.8 m³
Engine	Name	KUBOTA V3307
Engine	Nominal Output	52.5 kW / 2,600rpm
Fuel Used		Diesel
Tank Capacity	Fuel Tank Capacity	105 ℓ
	Hydraulic Oil Tank Capacity	85 ℓ
	DEF Tank Capacity	–
Off-Road Law Emission Regulation Notification and Standards	Name and Model of The non-road special motor vehicle	MOROOKA MST-700VDR
	Name and Type of Specified prime mover	KUBOTA V3307-CR-T-YDN
	Emission Standard	Tier 4 Final / EU Stage V

Add a Title

360° Full Rotating Crawler Carrier

The machine could change travel direction at narrow space without pivot turn and spin turn since upper structure can rotate. The rotating function also eases the machine to unload.

Strong undercarriage and high driving performance

The thick-walled, seamless rubber crawler is a masterpiece of outstanding durability, using 40 years of experience and know-how since its development! The HST (Hydro Static Transmission) system drives the rubber crawlers. The hydraulic drive transmission system ensures smooth movement.

Warning lamps and display are centrally located on the right side of the operator’s seat.

Warning lamps and display are located centrally on the right side of the operator’s s seat. Various statuses related to the vehicle such as remaining fuel level, voltage, engine speed meter, warning lamp lighting, etc. can now be easily checked.

Electronically controlled travel lever

Equipped with an electronically controlled travel lever. Driving can be operated intuitively using only your left hand. The operating posture has also been improved compared to previous models, reducing the burden on the operator. In addition, the operating system for high/low speed switching, horn, etc. is integrated into the travel lever, allowing the vehicle to travel as the operator wishes.

Equipped with “anti-stall function”

Equipped with an “anti-stall function” that prevents the engine from stalling during high-load operations such as running uphill and turning when loaded. Powerful running improves work efficiency.

Add a Title

No need for urea water

While maintaining high environmental performance, the engine installed in the MST40CR does not require a urea water supply, making daily maintenance easier.

Improved maintainability

Each piece of equipment is arranged to allow for efficient maintenance and inspection. The large grill opening allows for smooth inspection and maintenance, and the structure is easy to maintain.

Add a Title

ROPS / FOPS Cabin

The cabin with great comfort and visibility is compatible with ROPS (Rollover Protection Structure) and FOPS (Falling Object Protective Structure) to protect the operator.

Fulfilled safety function

By pressing the emergency stop switch, you can stop the vehicle’s engine in case of emergency. (left)

It is equipped with a rotation lock switch, and a new lever that does not function unless the button is pressed prevents unintentional rotation operation.

A safety lock lever is installed on the left side of the seat. Equipped with a safety lock lever in addition to a parking brake, greatly improving safety and preventing accidents due to unintentional movement.

Equipment for safe working

LED headlight is placed on the left and right sides of the vehicle, making it safer to work at night or in dark areas.

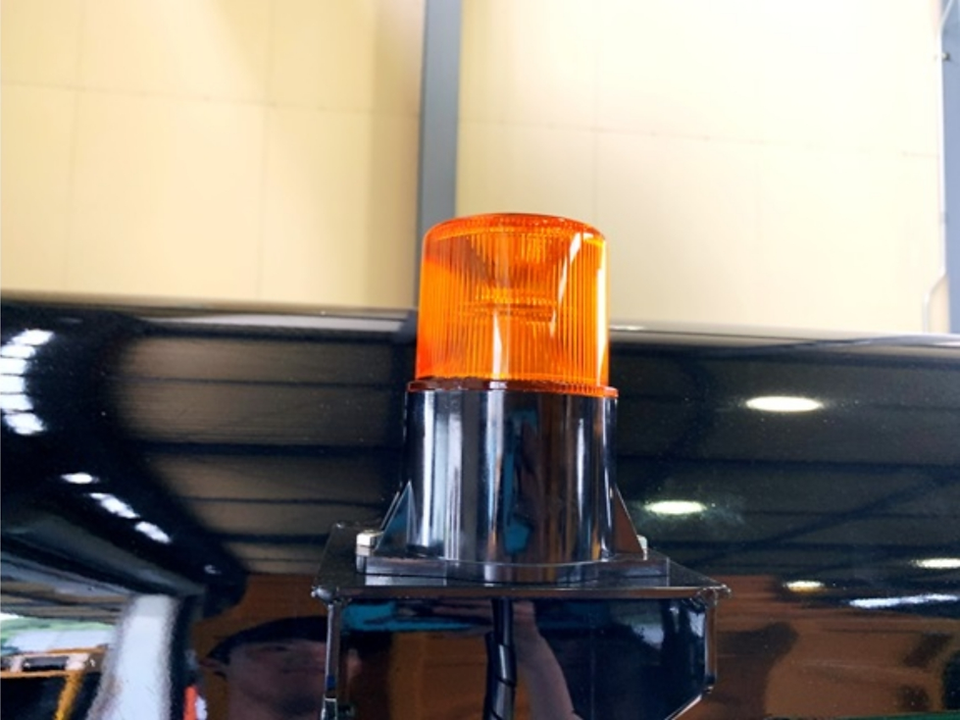

When the upper body turns, a rotating warning light mounted on the rear upper part of the cabin lights up to notify those around you that the upper body is rotating.
