Strong undercarriage and high driving performance
The thick-walled, seamless rubber crawler is a masterpiece of outstanding durability, using 40 years of experience and know-how since its development! The HST (Hydro Static Transmission) system drives the rubber crawlers. The hydraulic drive transmission system ensures smooth movement.

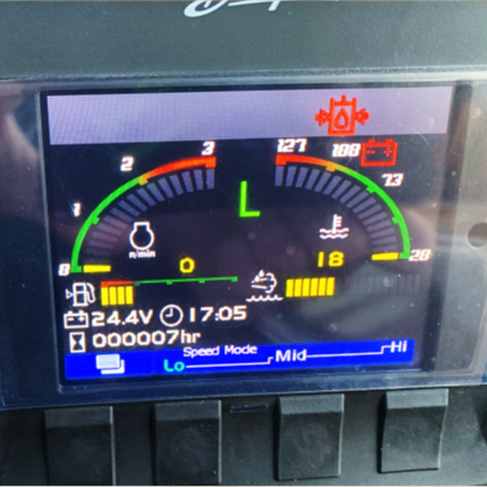

Warning lamps and LCD monitor are centrally located on the right side of the operator’s seat.
Warning lamps and the LCD monitor are located centrally on the right side of the operator’s s seat. Various statuses related to the vehicle such as remaining fuel level, voltage, engine speed meter, warning lamp lighting, etc. can now be easily checked.
Equipped with wear-resistant steel plate “HARDOX®” dump bed
The dump bed adopted HARDOX®, a wear-resistant steel plate that can withstand long-term use at forestry sites, for improved durability. It features a long service life and low running costs.
Electronic travel lever
The conventional hydraulic pilot-type traveling lever changed to an electronically traveling lever. Electronic control supports driving and realizes smooth and comfortable operation. In addition, the improved layout of the traveling lever provides more legroom and improved comfort.
“Auto-decel function” and “HST speed mode”
The Auto-decel function lowers the engine speed automatically when idling continues for a certain period of time to improve fuel economy and reduce CO₂ emissions and noise.
In addition to it, operators can select vehicle speed from three different speed modes. This allows not only high-speed driving but also stable driving at low speeds.
Cranab FC45DT grapple
MST-1000VDLG is equipped with a grapple.
・The maximum reach is 8m, which enables pulling lumbers over a wide area.
・Two stage telescopic arm
*When equipped with a grapple, the maximum loading capacity becomes 4,800kg.
