MST-1000VDL

Add a Title

Performance	Maximum Payload	5,500 kg
	Travel Speed (High/Low)	10.2 / 7.1 km
	Ground Pressure (Empty/Laden)	25.6 / 43.9 kPa
Machine Dimension and Weight	Operating Weight	7,700 kg
	Overall Length	5,550 mm
	Overall Width	2,500 mm
	Overall Height	2,710 mm
	Minimum Ground Clearance	425 mm
	Crawler Width	600 mm
	Crawler Outer Width	–
Dump Body	Dump Shape	Flat Bed
Dump Body	Length x Width	3,300 x 2,100 mm
Grapple	Name	–
Grapple	Grapple Capacity	–
Engine	Name	Caterpillar C4.4
Engine	Nominal Output	92.6 kW / 2,200 rpm
Fuel Used	Fuel	Diesel
Fuel Used	Fuel Tank Capacity	127ℓ
Tank Capacity	Hydraulic Oil Tank Capacity	54ℓ
Tank Capacity	DEF Tank Capacity	19ℓ
Off-Road Law Emission Regulation Notification and Standards	Model Name of Non-road Special Vehicle	MOROOKA MST-1000VDL
	Type Name of Specified prime mover	Caterpillar YDR-C4.4ND-IND
	Emission Standard	Tier 4 Final / EU Stage IV

Add a Title

Strong undercarriage and high driving performance

The thick-walled, seamless rubber crawler is a masterpiece of outstanding durability, using 40 years of experience and know-how since its development! The HST (Hydro Static Transmission) system drives the rubber crawlers. The hydraulic drive transmission system ensures smooth movement.

Warning lamps and LCD monitor are centrally located on the right side of the operator’s seat.

Warning lamps and the LCD monitor are located centrally on the right side of the operator’s s seat. Various statuses related to the vehicle such as remaining fuel level, voltage, engine speed meter, warning lamp lighting, etc. can now be easily checked.

Equipped with wear-resistant steel plate “HARDOX®” dump bed

The dump bed adopted HARDOX®, a wear-resistant steel plate that can withstand long-term use at forestry sites, for improved durability. It features a long service life and low running costs.

Electronic travel lever

The conventional hydraulic pilot-type traveling lever changed to an electronically traveling lever. Electronic control supports driving and realizes smooth and comfortable operation. In addition, the improved layout of the traveling lever provides more legroom and improved comfort.

“Auto-decel function” and “HST speed mode”

The Auto-decel function lowers the engine speed automatically when idling continues for a certain period of time to improve fuel economy and reduce CO₂ emissions and noise.

In addition to it, operators can select vehicle speed from three different speed modes. This allows not only high-speed driving but also stable driving at low speeds.

Add a Title

Fulfilled safety functionFulfilled safety function

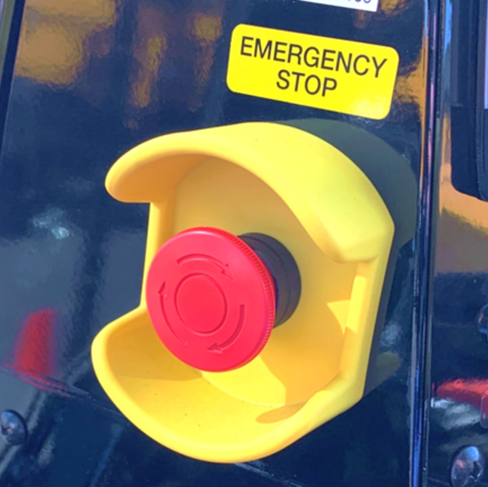

By pressing the emergency stop button, the vehicle engine can be stopped in case of emergency.

The engine cannot start unless turned ON the parking brake. This function prevents unintended operation after the engine starts.

Equipment for safe working

Reinforced protective bumpers on both sides of the front of the vehicle, which are safe and durable in the tough job sites and are easy to remove, are standard.

Large LED head lights above the cabin can work safer in nighttime and dark places.
