MST-1500VDL

Add a Title

Performance	Maximum Payload	7,000 kg
	Travel Speed (High/Low)	9.6 / 6.7 km
	Ground Pressure (Empty/Laden)	25.6 / 43.9 kPa
Machine Dimension and Weight	Operating Weight	10,900 kg
	Overall Length	6,650 mm
	Overall Width	2,750 mm
	Overall Height	2,940 mm
	Minimum Ground Clearance	510 mm
	Crawler Width	700 mm
	Crawler Outer Width	–
Dump Body	Dump Shape	Flat Bed
Dump Body	Length x Width	3,900 x 2,300 mm
Grapple	Name	–
Grapple	Grapple Capacity	–
Engine	Name	Cummins QSB6.7
Engine	Nominal Output	168 kW / 2,200 rpm
Fuel Used	Fuel	Diesel
Fuel Used	Fuel Tank Capacity	200ℓ
Tank Capacity	Hydraulic Oil Tank Capacity	100ℓ
Tank Capacity	DEF Tank Capacity	19ℓ
Off-Road Law Emission Regulation Notification and Standards	Model Name of Non-road Special Vehicle	MOROOKA MST-1500VDL-VB
	Type Name of Specified prime mover	Cummins QSB6.7-4C
	Emission Standard	Tier 4 Final / EU Stage IV

Add a Title

Strong undercarriage and high driving performance

The thick-walled, seamless rubber crawler is a masterpiece of outstanding durability, using 40 years of experience and know-how since its development! The HST (Hydro Static Transmission) system drives the rubber crawlers. The hydraulic drive transmission system ensures smooth movement.

Warning lamps and LCD monitor are centrally located on the right side of the operator’s seat.

Warning lamps and the LCD monitor are located centrally on the right side of the operator’s s seat. Various statuses related to the vehicle such as remaining fuel level, voltage, engine speed meter, warning lamp lighting, etc. can now be easily checked.

Equipped with wear-resistant steel plate “HARDOX®” dump bed

The dump bed adopted HARDOX®, a wear-resistant steel plate that can withstand long-term use at forestry sites, for improved durability. It features a long service life and low running costs.

Hydraulic pilot type 2 levers

A hydraulic pilot-type travel lever is adopted. This travel lever reduces the burden on the operator during operation and provides excellent responsiveness and fine operability.

Add a Title

Fulfilled safety function

By pressing the emergency stop button, the vehicle engine can be stopped in case of emergency.

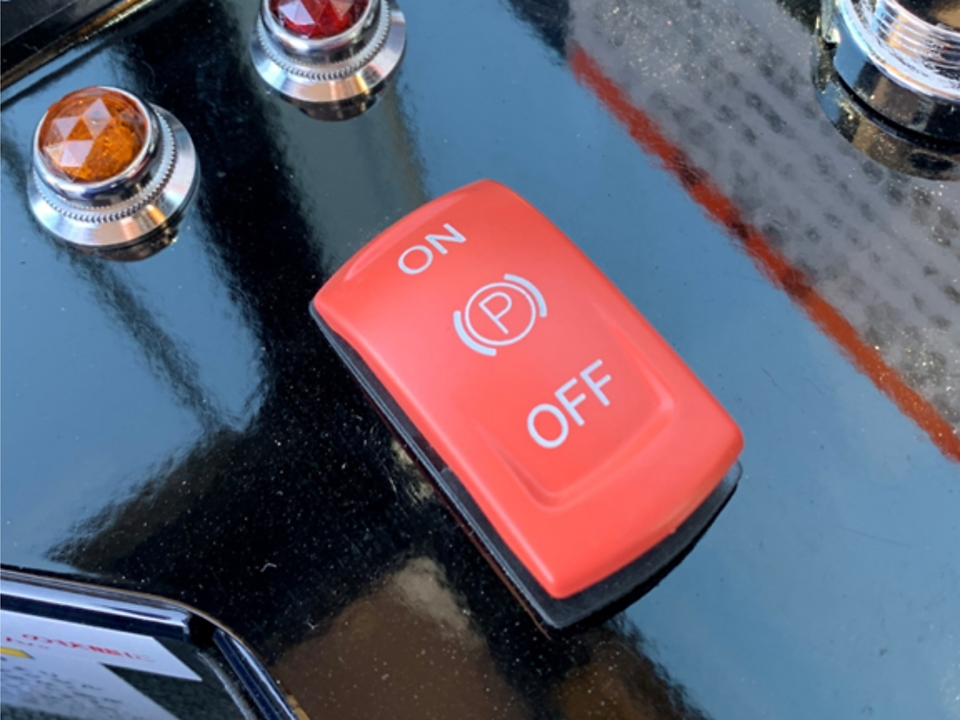

The engine cannot start unless turned ON the parking brake. This function prevents unintended operation after the engine starts.

Equipment for safe working

Reinforced protective bumpers on both sides of the front of the vehicle, which are safe and durable in the tough job sites and are easy to remove, are standard. Reinforced ribbed undercover protects the machine from rough road thrust.

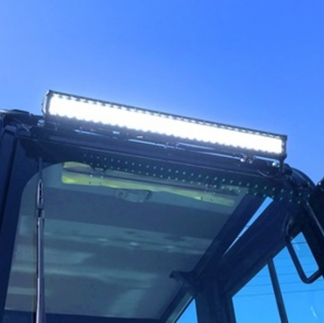

Large LED head lights above the cabin can work safer in nighttime and dark places.

A large mirror is adopted to check the safety of the surrounding area, which is often a blind from the operator’s seat to enhance safety during work.

Reliable forestry-specific design

The frame, designed specifically for the forestry industry, maintains the optimum weight balance when loading logs. It improves stability when transporting lumbers.
