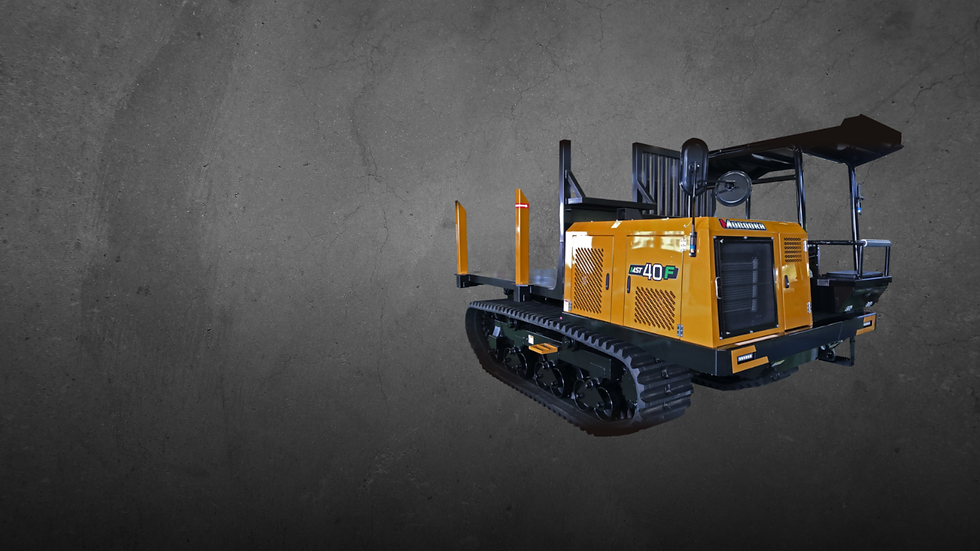

MST40F

Performance

Maximum Payload

4,000 kg

Travel Speed (High/Low)

11.5 / 7.8 km

Ground Pressure （Empty /Laden）

23.1 / 40.3 kPa

Machine Dimension and Weight

Operating Weight

5,400 kg

Overall Length

5,040 mm

Overall Width

2,100 mm

Overall Height

2,520 mm

Minimum Ground Clearance

420 mm

Crawler Width

500 mm

Crawler Outer Width

–

Dump Body

Dump Shape

Flat Bed

Length x Width

2,950 x 1,790 mm

Engine

Name

KUBOTA V3307

Nominal Output

52.5 kW / 2,600 rpm

Fuel Used

Fuel

Diesel

Fuel Tank Capacity

105ℓ

Tank Capacity

Hydraulic Oil Tank Capacity

85ℓ

Off-Road Law Emission Regulation Notification and Standards

Model Name of Non-road Special Vehicle

Morooka MST40-CS5D

Type Name of Specified prime mover

Kubota V3307-CR-T-YDN

Emission Standard

Tier 4 Final / EU Stage IV
